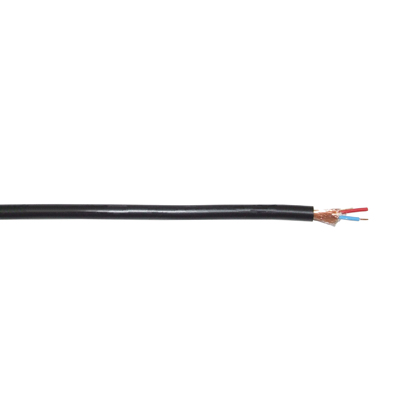

NFR 2202-110 D (AES/EBU) sw Meterlänge
- Artikelnummer
- 34630900
- EAN
- 4024608060446
| Beschreibung | Für den professionellen Einsatz im Tonstudio, Rundfunk oder den rauen Buehnenbetrieb bietet bda connectivity Profikabel an.
Kapazitaetsarmes symmetrische Mikrofonkabel nach AES/EBU Standard mit 110 Ohm Wellenwiderstand für analoge oder digitale Audiosignale. |
|---|---|
| Einsatzzweck | Audiokabel |
| CPR/DOP | n.s. |
Aufbau
| Aderanzahl | 2 |
|---|---|
| Leiterdurchmesser (mm) | 0,60 ± 0,05 |
| Leiterkonstruktion (n x mm) | 28 x 0,1 |
| Leitermaterial | Cu Blank |
| Aderabschirmung | Cu Wendelabschirmung |
| Aderisolation Abm (mm) | 1,50 ± 0,10 |
| Aderisolation Material | PE |
| Mantel Abm (mm) | 6,20 ± 0,20 |
| Mantel Material | PVC schwarz |
| Konstruktionsnummer | 090301 |
Elektrische Eigenschaften
| 100V-Betrieb | Nein |
|---|---|
| Wellenwiderstand (Ω) | 110 ± 10 |
| Kapazität ca. (pF/m) | 60 |
| DC-Widerstand-Innenleiter (Ω/km) | < 88,8 |
| DC-Widerstand-Aussenleiter (Ω/km) | < 30,2 |
| Isolationswiderstand (MΩ*km) | > 10 |
Mechanische Eigenschaften
| Min. Biegeradius (dynamisch) (mm) | 62 |
|---|---|
| Min Biegeradius (statisch) (mm) | 31 |
| Max. Zugbelastung (N) | 62 |
| Verbrennungswaerme (kWh/m) | 0,24 |
| UV-Beständigkeit | Sehr Gut |
| Betriebstemperaturbereich (°C) | -20 / +70 |
| Gewicht | 0,053 kg/m |
Sonstige
| CE | k.A. |
|---|---|
| VDE | k.A. |
| EN | k.A. |
| NSR/LVD | k.A. |
